PN16 DN50 - DN300
Technical Specifications of Flanged End Globe Valve:
- Design and manufacture: BS5152
- Face to face dimensions: EN 558-1 Series 10 (BS5152 Series 2)
- Flange dimensions and drilling: EN1092-2 PN16
- Size range: DN50 ~ DN300
- Working pressure: 1.6 MPa
- Suitable medium: water, oil and gas.

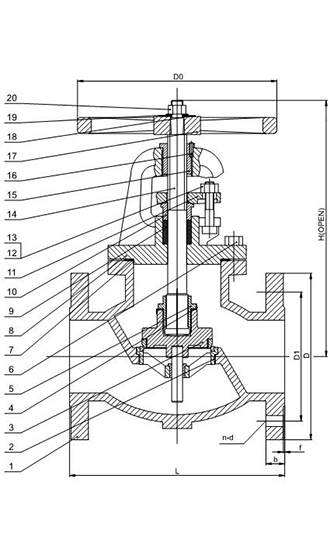

Parts and Materials of Flanged End Globe Valve:
No. |
Parts |
Materials |
BS Standard |
1 |
Body |
Cast iron |
BS1452 Gr. 220 |
2 |
Body seat ring |
Cast bronze |
BS1400 LG2 |
3 |
Disc |
Cast bronze |
BS1400 LG2 |
4 |
Gasket |
Brass |
BS2874 CZ122 |
5 |
Swivel nut |
Cast brass |
BS1400 PCB1 |
6 |
Bolts |
Steel |
BS970 43A |
7 |
Body gasket |
Graphite |
BS2494 type W |
8 |
Bonnet |
Cast iron |
BS1452 Gr. 220 |
9 |
Packing |
Graphite |
BS2494 type W |
10 |
Packing gland |
Cast brass |
BS1400 PCB1 |
11 |
Gland follower |
Ductile iron |
BS2789 Gr.420-12 |
12 |
Gland follower bolts |
Steel |
BS970 43A |
13 |
Gland follower nuts |
Steel |
BS970 43A |
14 |
Stem |
Brass |
BS2874 CZ122 |
15 |
Yoke bushing nut |
Cast bronze |
BS1400 LG2 |
16 |
Screw |
Steel |
BS970 43A |
17 |
Handwheel |
Cast iron |
BS1452 Gr. 220 |
18 |
Name plate |
Aluminium |
|
19 |
Washer |
Steel |
BS970 43A |
20 |
Handwhel nut |
Steel |
BS970 43A |
Dimensions (mm) of Flanged End Globe Valve:
DN |
L |
D |
D1 |
D2 |
b |
f |
n-d |
D0 |
50 |
203 |
165 |
125 |
99 |
20 |
3 |
4-19 |
178 |
65 |
216 |
185 |
145 |
118 |
20 |
3 |
4-19 |
178 |
80 |
241 |
200 |
160 |
132 |
22 |
3 |
8-19 |
200 |
100 |
292 |
220 |
180 |
156 |
24 |
3 |
8-19 |
254 |
125 |
330 |
250 |
210 |
184 |
26 |
3 |
8-19 |
300 |
150 |
356 |
285 |
240 |
211 |
26 |
3 |
8-23 |
300 |
200 |
495 |
340 |
295 |
266 |
30 |
3 |
12-23 |
348 |
250 |
622 |
405 |
355 |
319 |
32 |
3 |
12-28 |
400 |
300 |
699 |
460 |
410 |
370 |
32 |
4 |
12-28 |
457 |
