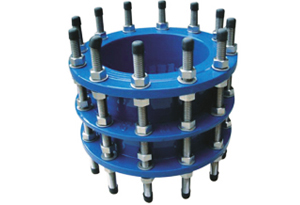

Especificaciones técnicas:
- Dimensiones de las bridas y taladrado: EN1092-2 PN10/16/25
- Especificación: DN50 - DN1200
- Sizes over DN1200 are also availableon request
- Presión máxima de operación: 1.0/1.6/2.5 Mpa
- Temperatura de funcionamiento: -15°C a ++80°C
- Medios adecuados: agua
- Revestimiento: Recubiertas de resina epoxi (el espesor no es inferior a 25mm)
Piezas y materiales:
Nº | Piezas | Material |
1 | Brida de tubo largo | Hierro dúctil 500-7/400-15 |
2 | Brida de corto tubo | Hierro dúctil 500-7/400-15 |
3 | Brida de fijación | Hierro dúctil 500-7/400-15 |
4 | Calzo | EPDM/NBR |
5 | Perno / tuerca | Acero al carbon o acero inoxidable |
Dimensiones (mm) y peso (kgs):
DN
| PN10 | PN16 | PN25 | ||||||||||||
A | D | K | Pernos | Peso | A | D | K | Pernos | Peso | A | D | K | Pernos | Peso | |
(mm) | (mm) | (mm) | n-M x L | (kg) | (mm) | (mm) | (mm) | n-M x L | (kg) | (mm) | (mm) | (mm) | n-M x L | (kg) | |
50 | 180 | 165 | 125 | 4-M16 x 330 | 14.5 | 180 | 165 | 125 | 4-M16 x 330 | 14.5 | 200 | 165 | 125 | 4-M16 x 340 | 14.5 |
65 | 180 | 185 | 145 | 4-M16 x 330 | 16.8 | 180 | 185 | 145 | 4-M16 x 330 | 16.8 | 200 | 185 | 145 | 8-M16 x 350 | 16.8 |
80 | 200 | 200 | 160 | 8-M16 x 350 | 18 | 200 | 200 | 160 | 8-M16 x 350 | 18 | 210 | 200 | 160 | 8-M16 x 350 | 21 |
100 | 200 | 220 | 180 | 8-M16 x 350 | 22 | 200 | 220 | 180 | 8-M16 x 350 | 22 | 220 | 235 | 190 | 8-M20 x 370 | 33 |
125 | 200 | 250 | 210 | 8-M16 x 350 | 28 | 200 | 250 | 210 | 8-M16 x 350 | 28 | 220 | 270 | 220 | 8-M24 x 380 | 42 |
150 | 200 | 285 | 240 | 8-M20 x 350 | 30 | 200 | 285 | 240 | 8-M20 x 350 | 30 | 230 | 300 | 250 | 8-M24 x 390 | 53 |
200 | 220 | 340 | 295 | 8-M20 x 380 | 43 | 220 | 340 | 295 | 12-M20 x 380 | 43 | 230 | 360 | 310 | 12-M24 x 400 | 74 |
250 | 220 | 400 | 350 | 12-M20 x 380 | 54 | 230 | 400 | 355 | 12-M24 x 400 | 55 | 250 | 425 | 370 | 12-M27 x 430 | 102 |
300 | 220 | 455 | 400 | 12-M20 x 380 | 76 | 250 | 455 | 410 | 12-M24 x 420 | 84 | 250 | 485 | 430 | 16-M27 x 440 | 131 |
350 | 230 | 505 | 460 | 16-M20 x 400 | 94 | 260 | 520 | 470 | 16-M24 x 440 | 107 | 270 | 555 | 490 | 16-M30 x 470 | 193 |
400 | 230 | 565 | 515 | 16-M24 x 400 | 126 | 270 | 580 | 525 | 16-M27 x 460 | 148 | 280 | 620 | 550 | 16-M33 x 490 | 245 |
450 | 250 | 615 | 565 | 20-M24 x 420 | 145 | 270 | 640 | 585 | 20-M27 x 460 | 183 | 280 | 670 | 600 | 20-M33 x 490 | 280 |
500 | 260 | 670 | 620 | 20-M24 x 440 | 162 | 280 | 715 | 650 | 20-M30 x 490 | 206 | 300 | 730 | 660 | 20-M33 x 520 | 324 |
600 | 260 | 780 | 725 | 20-M27 x 460 | 211 | 300 | 840 | 770 | 20-M33 x 520 | 272 | 320 | 845 | 770 | 20-M36 x 560 | 432 |
700 | 260 | 895 | 840 | 24-M27 x 460 | 254 | 300 | 910 | 840 | 24-M33 x 520 | 337 | 340 | 960 | 875 | 24-M39 x 590 | 571 |
800 | 290 | 1015 | 950 | 24-M30 x 500 | 339 | 320 | 1025 | 950 | 24-M36 x 550 | 408 | 360 | 1085 | 990 | 24-M45 x 630 | 801 |
900 | 290 | 1115 | 1050 | 28-M30 x 500 | 439 | 320 | 1125 | 1050 | 28-M36 x 560 | 522 | 380 | 1185 | 1090 | 28-M45 x 650 | 886 |
1000 | 290 | 1230 | 1160 | 28-M33 x 510 | 518 | 340 | 1255 | 1170 | 28-M39 x 600 | 616 | 400 | 1320 | 1210 | 28-M52 x 690 | 1270 |
1200 | 320 | 1455 | 1380 | 32-M36 x 570 | 678 | 360 | 1485 | 1390 | 32-M45 x 650 | 867 | 450 | 1530 | 1420 | 32-M52 x 780 | 1870 |
